CEE 247, Structural Dynamics, Fall 2006

By Nasser M. Abbasi. Last updated December 19, 2007







Class outline PDF

My lectures notes PDF  6 MB

Study notes PDF



Introduction

I took this course at UCI in fall 2006. Final course required to graduate from my MSc in Mechanical Engineering. The instructor is Professor FENG, Q. UCI Civil Eng. department. Was an interesting course, fun subject, I got an A+ in this course.



Instructor
Maria Q. Feng
Professor, University of California, Irvine
Department of Civil and Environmental Engineering
Department of Electrical Engineering and Computer Science

Office:

EG4139

Fax:

(949)824-2117

Phone:

(949)824-2162

E-mail:

mfeng@uci.edu

Address:

University of California, Irvine
E/4130 Engineering Gateway
Irvine, CA 92697-2175



Instructor web site http://mfeng.calit2.uci.edu/



References

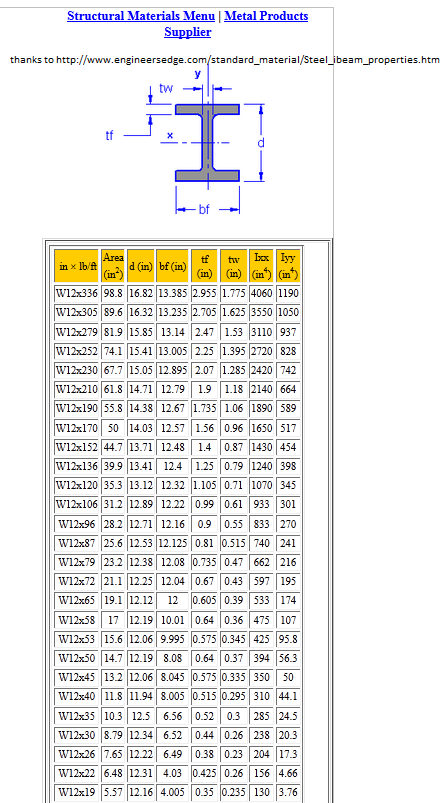

1.       Steel_ibeam_properties.htm  gives I for different W sections for steel. In case the above page goes away, here is a screen shot copy right is due to engineeringsedge.com A copy is saved here

2.       http://www.hancockjoist.com/glossary.htm structural glossary

3.       http://www.mcvicker.com/offtech/smwmsp.htm  engineering terms.



HW’s



HW#

Submitted HW

Graded HW

score

1

PDF HTML

PDF

39/40

2

PDF HTML

PDF

60/60

3

PDF HTML

PDF

40/40

4

PDF HTML

Mathematica:

HTML

Notebook

PDF

30/30

5

PDF

HTML

PDF

10/10



EXAMS

First midterm PDF   94/100

Final Exam (not avaliable)



Some study notes

(images, click to enlarge)

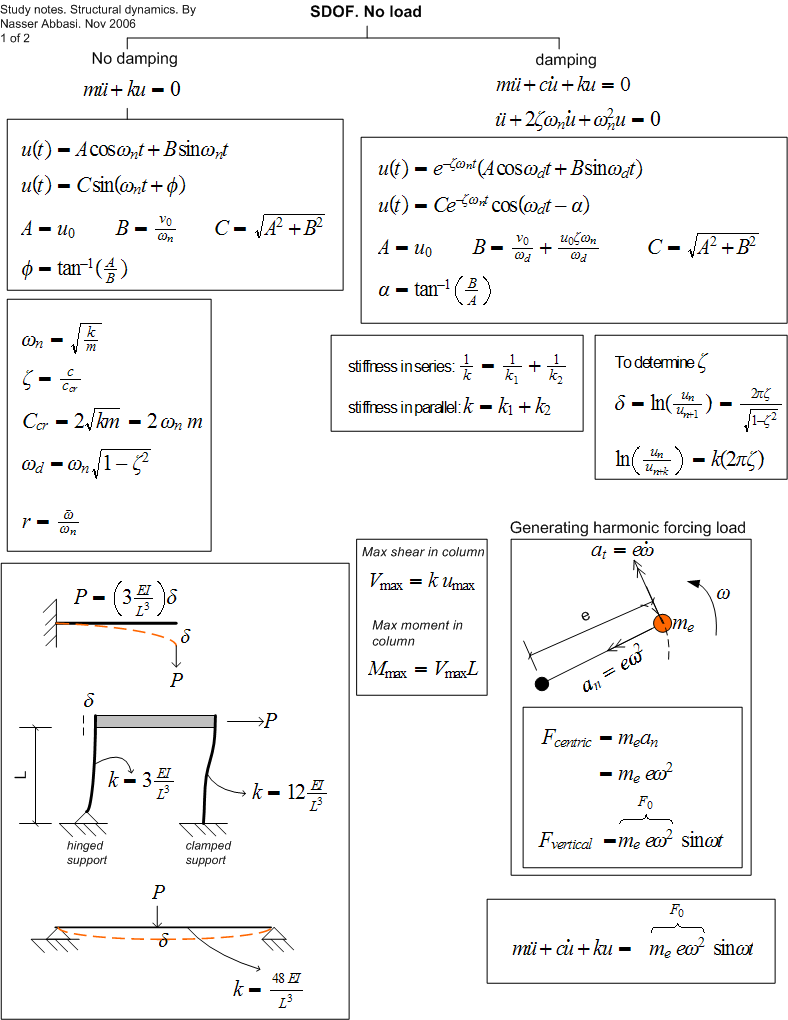

note1

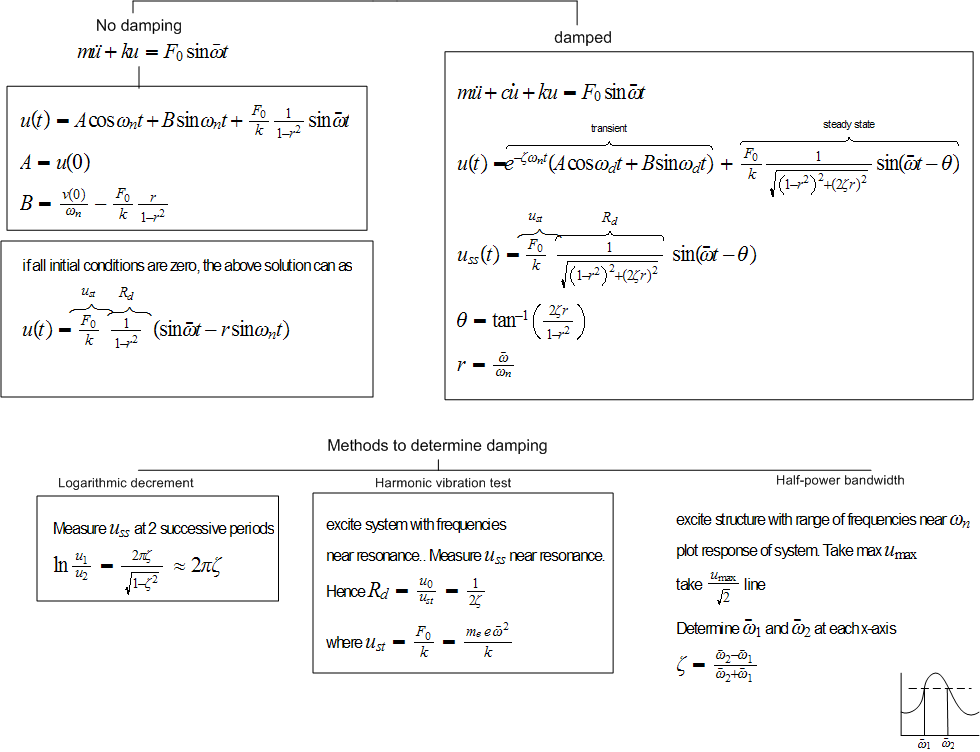

note2

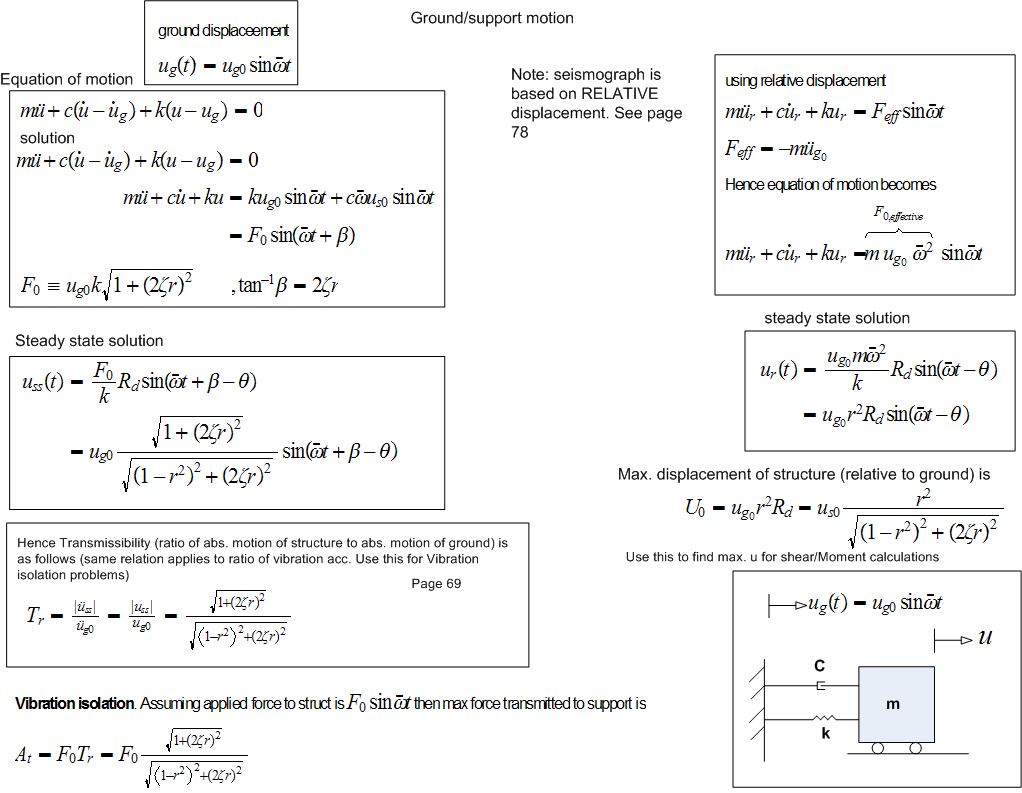

note3

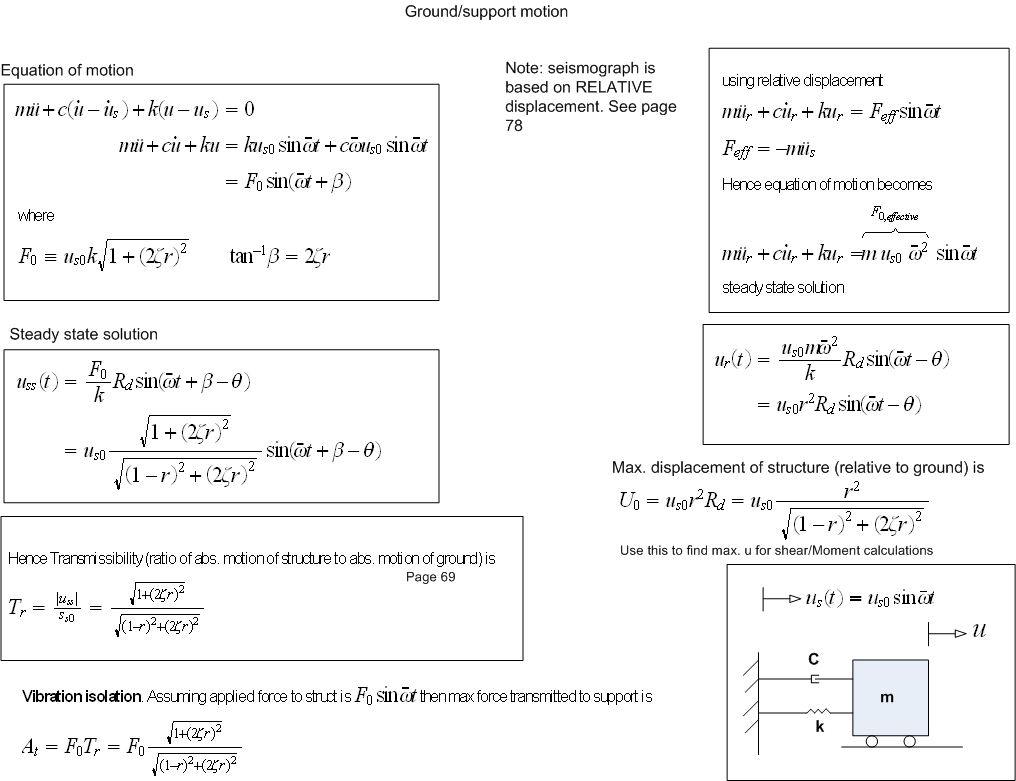

note4
