### 4.17 How to solve wave equation using leapfrog method?

Solve $$u_{tt}=c^2 u_{xx}$$ for $$0\geq x \leq 1$$ with initial data deﬁned as $$f(x)=\sin \left (2 \pi \frac {x - 0.2}{0.4}\right )$$ over $$0.2 \geq x \leq 0.6$$ and ﬁxed at both ends.

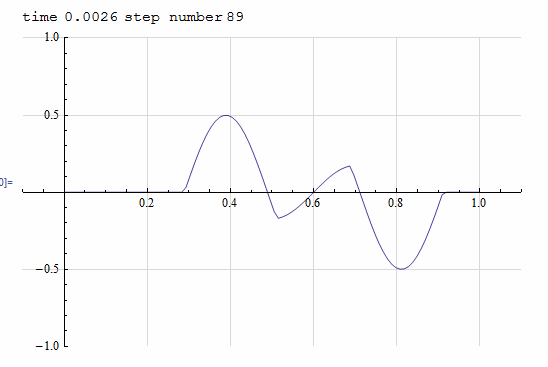

Mathematica

SetDirectory[NotebookDirectory[]];
Dynamic[p]

nPoints=100;
speed=351;
f1[x_]:= Piecewise[{{Sin[2 Pi (x-0.2)/0.4],0.2<=x<=0.6},{0,True}}];
coord = Table[j h,{j,0,nPoints-1}];
ic    = f1[#]&/@ coord;
h     = 1/(nPoints-1);
delT  = h/speed;
nSteps=1000;
end   = -1;
uNow  = ic;
uLast = uNow;
uNext = uNow;

Do[
Which[
n==1,
uNext[[2;;end-1]]=(1/2)(uNow[[1;;end-2]]+uNow[[3;;end]]);
uLast=uNow;
uNow=uNext,

n>2,
uNext[[2;;(end-1)]]=uNow[[1;;(end-2)]]+uNow[[3;;end]]-uLast[[2;;(end-1)]];
uLast=uNow;
uNow=uNext
];
(*Pause[.02];*)
p=Grid[{
{Row[{"time",Spacer[5],N[n*delT],Spacer[5],"step number",Spacer[2],n}]},
{ListLinePlot[Transpose[{coord,uNow}],PlotRange->{{-.1,1.1},{-1,1}},
ImageSize->400,GridLines->Automatic,GridLinesStyle->LightGray],SpanFromLeft}
},Alignment->Center
],
{n,1,nSteps}];

Export["images/mma_100.pdf",p]

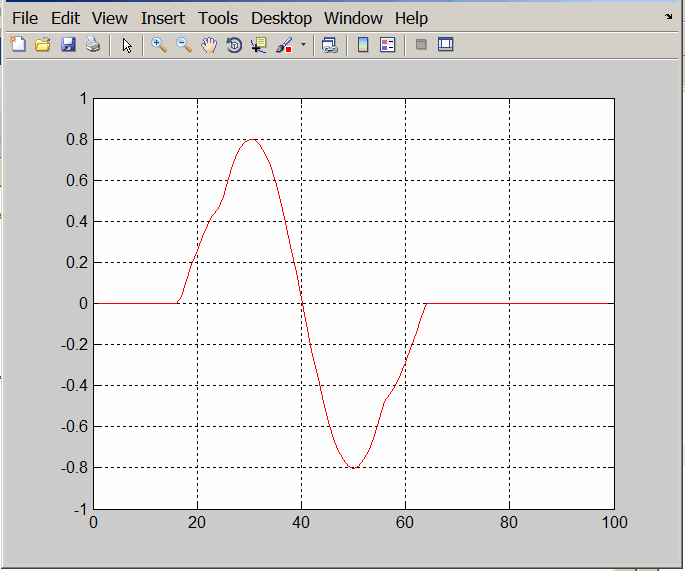

Matlab

%Nasser M. Abbasi July 8, 2014
%solve u_tt = wave_speed * u_xx using leap frog
%  0<x<1
%  initial data is f(x)
%  initial speed = 0;
% fixed at x=0 and x=1

close all;
nPoints = 100;
speed   = 351;
f       = @(x) sin(2*pi*(x-0.2)/0.4).*(x>0.2&x<=0.6)
coord   = linspace(0,1,nPoints);
ic      = f(coord);
h       = 1/(nPoints-1);
delT    = h/speed;
last    = ic;
now     = last;
next    = now;
nSteps  = 500;

for n=1:nSteps
if n==1
next(2:end-1) = 1/2*(now(1:end-2)+now(3:end));
last = now;
now  = next;
else
next(2:end-1) = now(1:end-2)+now(3:end)-last(2:end-1);
last = now;
now  = next;
end
plot(now,'r');
xlim([0 nPoints]);
ylim([-1 1]);
grid;
pause(.1);
drawnow;
end

print(gcf, '-dpdf', '-r600', 'images/matlab_100');


with Ada.Text_IO;                       use Ada.Text_IO;

procedure foo is
nPoints : constant Integer := 100;
type grid_type is array (1 .. nPoints) of Float;
Output : File_Type;
nSteps : constant Integer := 500;
speed  : constant Float   := 351.0;
coord  : array (1 .. nPoints) of Float;
h      : constant Float   := 1.0 / (Float (nPoints) - 1.0);
delT   : constant Float   := h / speed;
last   : grid_type        := (others => 0.0);
now    : grid_type        := last;
next   : grid_type        := last;

-- output one snapshot to file to plot later
procedure put_rec (rec : in grid_type) is
begin
for i in rec'Range loop
Put (Output, rec (i));
Put (Output,' ');
end loop;
end put_rec;

-- define function of initial data
function f (x : Float) return Float is
begin
if (x > 0.2 and x <= 0.6) then
return Sin (2.0 * Pi * (x - 0.2) / 0.4);
else
return 0.0;
end if;
end f;

begin
Create (File => Output, Mode => Out_File, Name => "output2.txt");

for i in 1 .. nPoints loop
coord (i) := Float (i - 1) * h;
last (i)  := f (coord (i));
end loop;

now  := last;
next := now;
put_rec (now);
New_Line (File => Output);

for i in 1 .. nSteps loop
if i = 1 then
for j in 2 .. nPoints - 1 loop
next (j) := (1.0 / 2.0) * (now (j - 1) + now (j + 1));
end loop;
last := now;
now  := next;
put_rec (now);
New_Line (File => Output);
else
for j in 2 .. nPoints - 1 loop
next (j) := now (j - 1) + now (j + 1) - last (j);
end loop;
last := now;
now  := next;
put_rec (now);
if i < nSteps then
New_Line (File => Output);
end if;
end if;

end loop;

Close (Output);
end foo;


The GPR ﬁle to build the above is

project One is

package Builder is
for Executable_Suffix use ".exe";
end Builder;

package Compiler is
for Default_Switches ("ada") use ("-g", "-gnata", "-gnato", "-fstack-check",
"-gnatE", "-fcallgraph-info=su,da");
end Compiler;

end One;



The animation for Ada was done by reading the output and using the plot command in Matlab to show the result.

close all;
