Problem 7.8 part ( C )

Nasser Abbasi

Output

» nma_7_8_partc

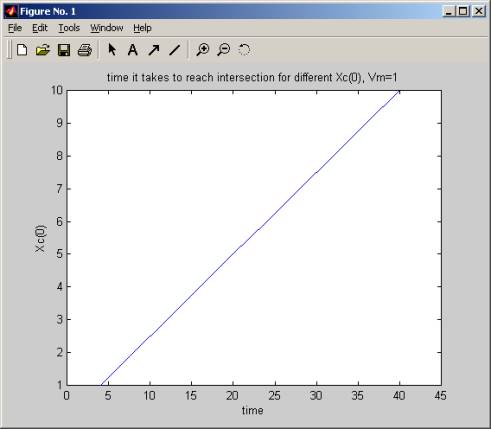

plot trajectories of xc(t) for problem 7.8, part b

Nasser Abbasi

Source code

%

% plot position with time for car for problem 7.8, part c

% Nasser Abbasi

%

clear all; help nma_7_8_partc;

Vm = 1;

XcV =[-1 -2 -3 -4 -5 -6 -7 -8 -9 -10]; % some values for Xc(0)

n=0;

for(k=1:length(XcV))

Xc = XcV(k);

time=0;

currentPosition= Xc;

while(currentPosition <= 0 )

time = time + 0.01;

if( time < - Xc/Vm )

currentPosition = Xc; % i.e. remain standing still

else

currentPosition= Vm*time - 2* real(sqrt(-Xc*Vm*time));

end

end

n=n+1;

x(n,1) = time;

x(n,2) = Xc;

end

plot(x(:,1),abs(x(:,2)));

title('time it takes to reach intersection for different Xc(0), Vm=1');

xlabel('time');

ylabel('Xc(0)');
