some of my matlab functions, GUI apps and scripts

Nasser M. Abbasi, updated Feb 16, 2012

zip files are build such that each is self contained with all the needed matlab files and .fig file (if applicable) to run each application or function from the directory created once the zip file is unziped.

Work in progree, this page is updated all the time.

#	code	depends on	description
1	COMPUTED TOMOGRAPHY, MATHEMATICS AND SIMULATION using Matlab report and source code

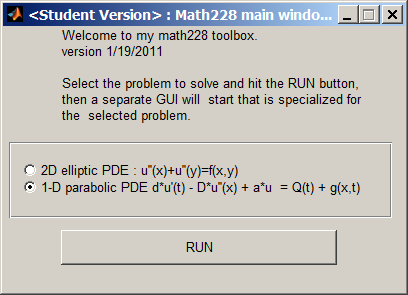

2	small GUI that starts other 2 GUI's below (not really needed, can just use the GUI's directly below, just did it for fun to try the idea). nma_math228 to start. nma_math228.m nma_math228.zip	depends	can be used to start poisson PDE GUI and diffusion PDE GUI.
3	Solve FitzHugh-Nagumo equations on unit square nma_HW2_math_228B_problem3.m report is here nma_HW2_math_228B_problem3.zip	depends
4	GUI application, poisson PDE solver in 2D using a number of finite difference methods: Jacobi, Gauss-Seidel, SOR, direct solver, steepest descent. Support Dirichlet and Neumann boundary conditions and non-uniform grid. Type nma_poisson_GUI to start. nma_poisson_GUI.m nma_poisson_GUI.zip report is here	depends

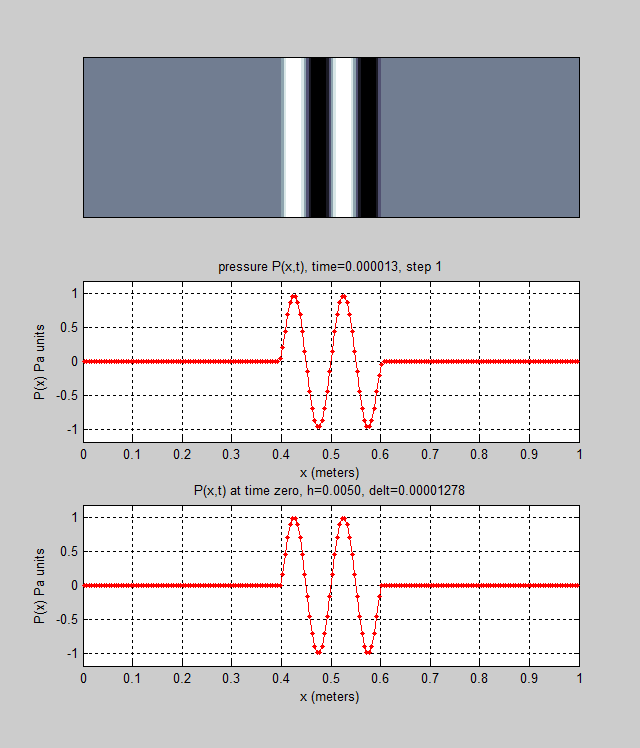

5	Solve problem 1, HW4, Lax-Wendroff to solve pressure wave equation report and more animation here nma_math_228b_HW4_parblem_1_part_b.m nma_math_228b_HW4_parblem_1_part_b.zip	depends

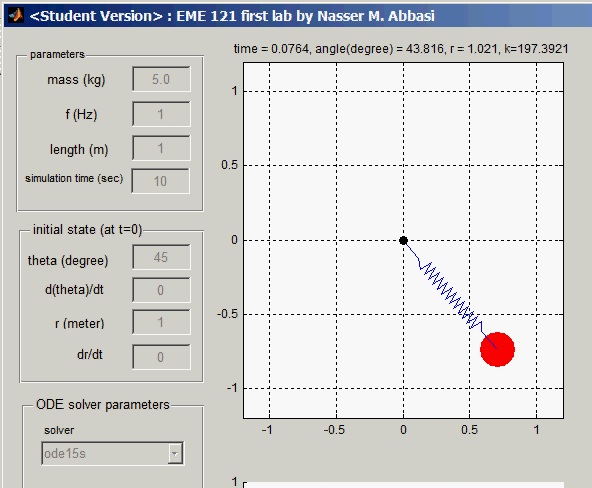

6	These files make up the lab GUI application spring pendulum nma_eme_121_lab1.m nma_eme_121_lab1.zip here is the class report	depends	Lab 1, simulation of spring pendulum. EME 121, UC Davis, spring 2011

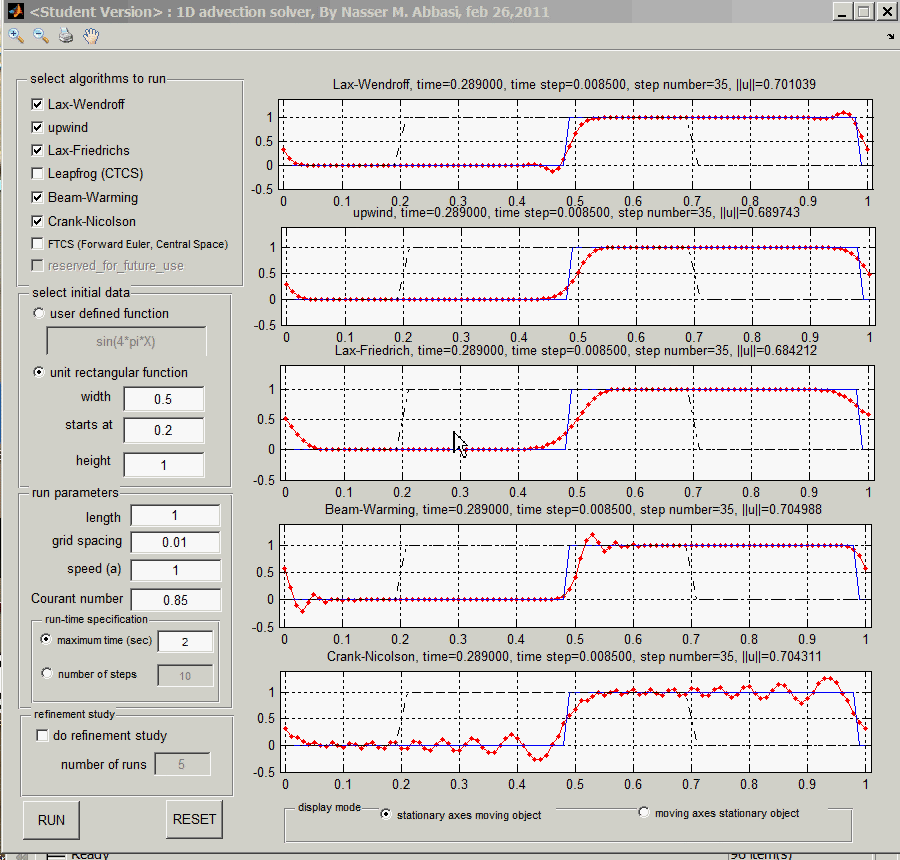

7	These files make up the GUI application for solving advection PDE, report here nma_advection_pde_1D.m nma_advection_pde_1D.zip	depends	solves the advection PDE in 1D using Lax-Wendroff, upwind, Lax-Friedrichs, Leapfrog (CTCS), Beam-Warming, Crank-Nicolson, and FTCS( forward Euler, centered space)

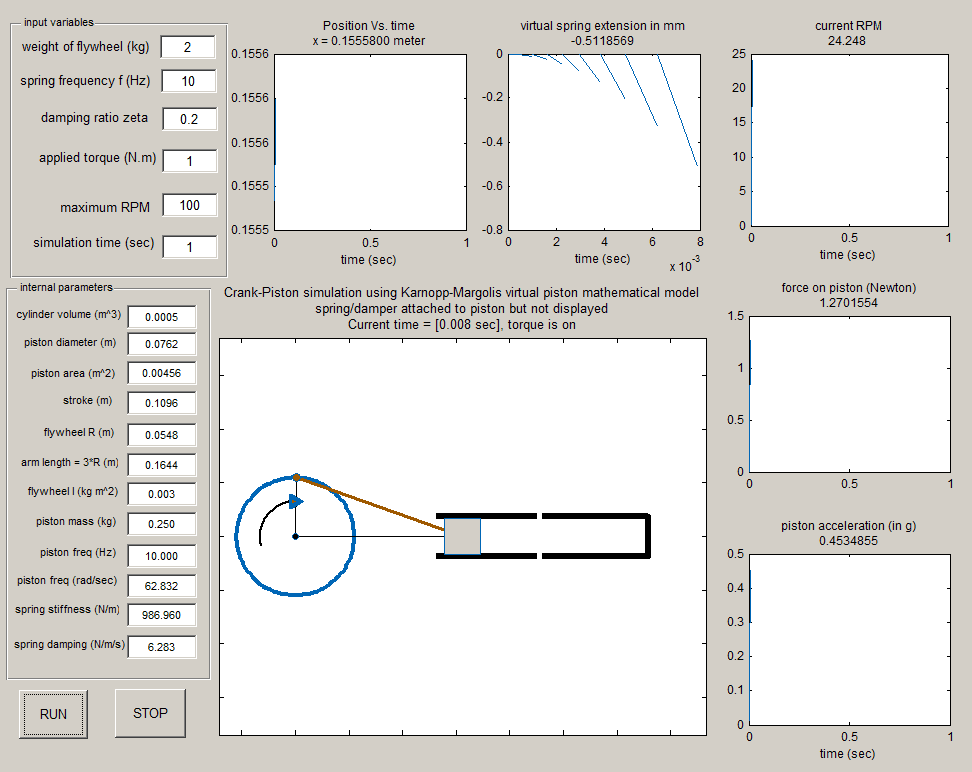

8	These files make up the GUI application simulation of crank-piston. MAE 121, lab3, UC davis, spring 2010 nma_lab3_eme_121_fig.m nma_lab3_eme_121_fig.zip here is the class report	depends	Lab 3, simulation of crank-piston. EME 121, UC Davis, spring 2011

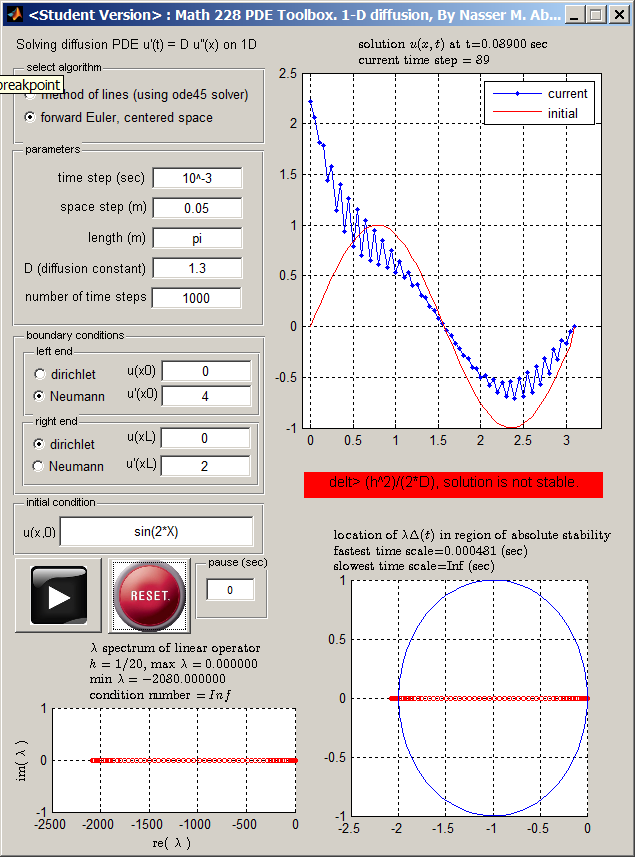

9	These files make up the GUI application for solving diffusion PDE nma_diffusion_1d.m nma_diffusion_1d.zip	depends	solves the heat PDE in 1D using explicit (FTCS) and implicit (crank-Nicolson). Also solves the convection diffusion PDE in 1D using FTCS. Periodic, Dirichlet and Neumann boundary conditions.
10	These files make up the lab GUI application spring pendulum nma_lab2_eme_121_fig.m nma_lab2_eme_121_fig.zip here is the class report	depends	Lab 2, study the circular disk with mass on spring moving in a slot on the table. EME 121, UC Davis, spring 2011
11	These files make up the lab GUI application spring pendulum nma_lab2_eme_121.m nma_lab2_eme_121.zip here is the class report	depends	Lab 2, study the circular disk with mass on spring moving in a slot on the table. EME 121, UC Davis, spring 2011
12	lab4 GUI application vehicle dynamics, report here report nma_MAE121_spring_2010_lab4.m nma_MAE121_spring_2010_lab4Main.m nma_MAE121_spring_2010_lab4.fig nma_MAE121_spring_2010_lab4.zip	depends	Lab 4, half car model simulation. EME 121, UC Davis, spring 2011
13	nma_P2DDIRJCB_S.m nma_P2DDIRJCB_S.zip	depends	matlab script which solves the 2D Poission PDE on unit square using the Jacobian iterative method
14	nma_P2DDIRSOR_S.m nma_P2DDIRSOR_S.zip	depends	solves the 2D poisson on unit square for zero boundary conditions using SOR method
15	nma_PDE_parabolic_explicit_rod_with_rate_BC.m nma_PDE_parabolic_explicit_rod_with_rate_BC.zip	depends	Solves the parabolic PDE using explicit method for given Boundary expressed as rate
16	nma_TEST_PDE_parabolic_explicit_rod_with_rate_BC.m nma_TEST_PDE_parabolic_explicit_rod_with_rate_BC.zip	depends	tests the above function
17	nma_PDE_parabolic_explicit_rod.m nma_PDE_parabolic_explicit_rod.zip	depends	Solves the parabolic PDE using explicit method for given Boundary fixed conditions (do not change with time)
18	nma_TEST_PDE_parabolic_explicit_rod.m nma_TEST_PDE_parabolic_explicit_rod.zip	depends	tests the above function
19	nma_spline.m nma_spline.zip	depends	takes $(x,y)$ coordinates and computes the cubic splines between them $f(x)=a x^3 + b x^2 + c x + d$
20	nma_test_spline.m nma_test_spline.zip	depends	tests the above functions and makes a plot.
21	nma_185_proj3.m nma_185_proj3.zip	depends	Solve the Lotka-Volterra 2-ODE system. Asks for input from keyboard (rabbits/foxes) and plots population curves
22	nma_euler_heun2.m nma_euler_heun2.zip	depends	function to solve ODE using Euler-Heun algorithm (called also the corrector-predictor method.
23	nma_solve_2D_diffusion_ADI.m nma_solve_2D_diffusion_ADI.zip	depends	Solves the 2D diffusion PDE problem $D (\frac{\partial^2 u}{\partial x^2}+\frac{\partial^2 u}{\partial y^2})=\frac{\partial u}{\partial t}$ on unit square with Neumann boundary conditions. Uses cell centered grid points and uses ADI scheme.
24	nma_test_solve_2D_diffusion_ADI.m nma_test_solve_2D_diffusion_ADI.zip	depends	driver for the 2D ADI solver
25	nma_generate_A_and_ARHS_for_2D_diffusion_Neumman.m nma_generate_A_and_ARHS_for_2D_diffusion_Neumman.zip	depends	This function generates the A and B matrices to use before calling the ADI solver.
26	nma_solve_reaction_ODE.m nma_solve_reaction_ODE.zip	depends	solves the reaction ODE part of the FitzHugh-Nagumo equations
27	nma_solve_gauge_ODE.m nma_solve_gauge_ODE.zip	depends	solves the ode $w_t = epsilson(w-gamma*w)$, part of problem 3, HW2
28	nma_gen2Ddirch.m nma_gen2Ddirch.zip	depends	2D dirchilet for Poisson
29	nma_verify_valid_positive_numeric.m nma_verify_valid_positive_numeric.zip	depends	utility function. verifies a number is numeric and positive
30	nma_verify_valid_positive_integer.m nma_verify_valid_positive_integer.zip	depends	utility function. verifies a number is integer and positive
31	nma_verify_valid_non_negative_numeric.m nma_verify_valid_non_negative_numeric.zip	depends	utility function. verifies a number is non negative
32	nma_verify_valid_numeric.m nma_verify_valid_numeric.zip	depends	utility function. verifies a number is numeric
33	nma_evaluate_1D_function.m nma_evaluate_1D_function.zip	depends	utility function. evaluates a function passed as string on 1D grid
34	nma_c2f.m nma_c2f.zip	depends	utility function, This function is the prologation operator which implements coarse to fine grid bilinear interpolation mapping
35	nma_f2c.m nma_f2c.zip	depends	utility function, The restriction operator which implements the fine grid to a coarse grid full weight mapping on 2D
36	nma_GENP2D.m nma_GENP2D.zip	depends	generate A system matrix, and vector f for the problem Au=f, to solve for u on 2D. A is Poisson discrete A matrix based on use of standard 5 points laplacian.
37	nma_solver_Vcycle.m nma_solver_Vcycle.zip	depends	This function does one iteration relaxation, called by V cycle for multigrid solver of the 2D Poisson PDE On unit square.
38	nma_relax.m nma_relax.zip	depends	This function does one iteration relaxation, called by V cycle for multigrid solver of the 2D Poisson PDE On unit square.
39	nma_solver_Vcycle.m nma_solver_Vcycle.zip	depends	solve poisson 2D pde on unit square with zero boundary conditions using multigrid V cycle method. This function sets up cycle, then calls nma_V_cycle() to actually perform the cycle computation in a loop until convegence
40	my implementation of LU Decomposition and Linear Solver using Matlab see report and code here
41	Small Matlab GUI untility to change units of a Matlab .fig file. Make sure to save a copy of your fig file before using, just in case. see report and code here
42	nma_V_cycle.m nma_V_cycle.zip	depends	Implement multigrid V Cycle to solve 2D poisson PDE
43	nma_ISSYM.m nma_ISSYM.zip	depends	checks that matrix is symmetrix or not
44	nma_ISSPD.m nma_ISSPD.zip	depends	checks that matrix is spd or not
45	nma_validate_dimensions_1.m nma_validate_dimensions_1.zip	depends	utility function Verifies that grid is power of 2 plus one size. Verfies that grid is 2D and square for the Poisson PDE solver
46	nma_validate_dimensions.m nma_validate_dimensions.zip	depends	utility function Verifies that grid is power of 2 plus one size. Verfies that grids are 2D and square, and that dimensions match for the Poisson PDE solver
47	nma_check_all_zero_boundaries.m nma_check_all_zero_boundaries.zip	depends	utility function verifies that boundary conditions are zero for the Poisson PDE solver
48	nma_find_norm.m nma_find_norm.zip	depends	utility function called from number of places to find the grid norm for the Poisson PDE solver
49	nma_find_residue.m nma_find_residue.zip	depends	utility function called from number of places to find the grid norm for the Poisson PDE solver
50	nma_P2DDIRSOR.m nma_P2DDIRSOR.zip	depends	Solve the 2D poisson PDE on unit square with Dirichlet B.C using SOR method
51	nma_FDM_matrix_laplace_1D_Neumann_scheme_1.m nma_FDM_matrix_laplace_1D_Neumann_scheme_1.zip	depends	utility function returns the A matrix, which is the system finite difference matrix for numerical solution of 1-D laplace equation $\frac{\partial^2 u}{\partial x^2}=f(x)$ with Nuemman boundary conditions on both sides of the element
52	nma_FDM_matrix_laplace_1D_Neumann_scheme_2.m nma_FDM_matrix_laplace_1D_Neumann_scheme_2.zip	depends	utility function returns the A matrix, which is the system finite difference matrix for numerical solution of 1-D laplace equation $\frac{\partial^2 u}{\partial x^2}=f(x)$ with Nuemman boundary conditions on both sides of the element
53	nma_FDM_matrix_laplace_1D_dirichlet.m nma_FDM_matrix_laplace_1D_dirichlet.zip	depends	utility function returns the A matrix, which is the system finite difference matrix for numerical solution of 1-D laplace equation $\frac{\partial^2 u}{\partial x^2}=f(x)$ with Dirichlet boundary conditions on both sides of the element
54	nma_FDM_matrix_laplace_1D_robin.m nma_FDM_matrix_laplace_1D_robin.zip	depends	utility function returns the A matrix, which is the system finite difference matrix for numerical solution of 1-D laplace equation $\frac{\partial^2 u}{\partial x^2}=f(x)$ with Nuemman boundary conditions on both sides of the element
55	nma_RK4.m nma_RK4.zip	depends	Function to solve 1st order ODE using Runge-Kutta classical 4th order
56	nma_romberg.m nma_romberg.zip	depends	generate the Romberg integration table
57	nma_test_romberg.m nma_test_romberg.zip	depends	driver for the above function
58	nma_trapezoidal.m nma_trapezoidal.zip	depends	integrates a function using trapezoidal rule using specific number of strips
59	change_figure_units/index.htm	N/A	mall untility to change units of a Matlab .fig file
60	nma_math_228b_HW4_problem_3.m nma_math_228b_HW4_problem_3.zip	depends	This function solves problem 3 HW 4 for Math 228B, UC Davis, winter 2011 It solves the diffusion problem $u_t + a u_x = 0$ using finite volume method with the use of flux limiter functions
61	nma_get_index.m nma_get_index.zip	depends	utility function,called from number of places to obtain the residue for the Poisson PDE solver
62	nma_zoom_image.m nma_zoom_image.zip	depends	zooms an image by factor k using nearest neighbor algorithm
63	nma_set_figure_position.m nma_set_figure_position.zip	depends	called to create a figure in middle of window
64	nma_SD.m nma_SD.zip	depends	solves Au=f using the method of steepest descent
65	nma_math228b_HW2_prob2.m nma_math228b_HW2_prob2.zip	depends	implements the refinement study for HW2 for Math 228B UC Davis, Winter 2011
66	matlab class nma_math228b_HW2_prob2.m nma_math228b_HW2_prob2.zip	depends	Class to implement the Lax-Wendroff scheme to solve advection PDE in 1-D
67	nma_testLaxWendroff.m nma_testLaxWendroff.zip	depends	driver to test the above class
68	nma_format_matrix.m nma_format_matrix.zip	depends	prints matrix of numerical data with headings in formatted way
69	nma_EULERH.m nma_EULERH.zip	depends	Function to solve ODE using Euler-Heun algorithm (called also the corrector-predictor method)
70	nma_CG.m nma_CG.zip	depends	solves Au=f using the method of conjugate gradient with pre-conditioning
71	nma_TEST_CG.m nma_TEST_CG.zip	depends	driver for the nma_CG.m
72	nma_test_CG_GUI.m nma_test_CG_GUI.zip	depends	simple GUI front end to the nma_CG() solver, to solve 2D poisson problem using conjugate gradient method with preconditioning
73	nma_TEST_CG_2.m nma_TEST_CG_2.zip	depends	another function to test nma_CG.m this compares my solution with that found by matlab pcg() function
74	matlab class refinement_study_manager.m refinement_study_manager.zip	depends	This class is used for doing refinement study for my math 228 numerical pde class
75	nma_laplaceRectNuemann.m nma_laplaceRectNuemann.zip	depends	solves the laplace PDE for rectangular region for Nuemann boundary conditions at the bottom edge only
76	nma_laplaceRectDirchletBendCorner.m nma_laplaceRectDirchletBendCorner.zip	depends	solves the laplace PDE for rectangular region for Dirclet boundary conditions with the lower left corner bend per parameters alpha and beta
77	nma_laplaceRectDirchlet.m nma_laplaceRectDirchlet.zip	depends	solves the laplace PDE for rectangular region for Dirclet boundary conditions
78	nma_inputNumeric.m nma_inputNumeric.zip	depends	generic function that reads a numeric number from user and keeps trying untill the user types in correct value
79	nma_euler_midpoint.m nma_euler_midpoint.zip	depends	solve ODE using Euler-mid-point algorithm
80	nma_findAlphaForMinDeltaV.m nma_findAlphaForMinDeltaV.zip	depends	Finds the minumum alpha (initial inclincatin correction) for an orbit relative to a larger circular orbit. see design note for more detailes
81	nma_testfindAlphaForMinDeltaV.m nma_testfindAlphaForMinDeltaV.zip	depends	driver to test the above function
82	nma_findPointOnLine.m nma_findPointOnLine.zip	depends	find how many steps needed to reach withing tolearance close to a point on a line by taking fixed number of steps. Line wrapes around
83	nma_getDeltaTimeFromDeltaNu.m nma_getDeltaTimeFromDeltaNu.zip	depends	calculates the delta time, or the time of flight, for the orbit moving from nu0 to nu. It does this calculations for any one of the 4 conic sections
84	nma_getFlux1.m nma_getFlux1.zip	depends	used somewhere, need to find out
85	nma_getOrbitParams.m nma_getOrbitParams.zip	depends	Finds orbit parameters from the velosity and position vectors
86	nma_getUniversalVariable.m nma_getUniversalVariable.zip	depends	compute the Universal Variable X for an orbit
87	nma_moveProbe.m nma_moveProbe.zip	depends	Moves a probe in an orbit for deltaTime from a starting position and velosity vectors, and returns the new position and veclosity vectors

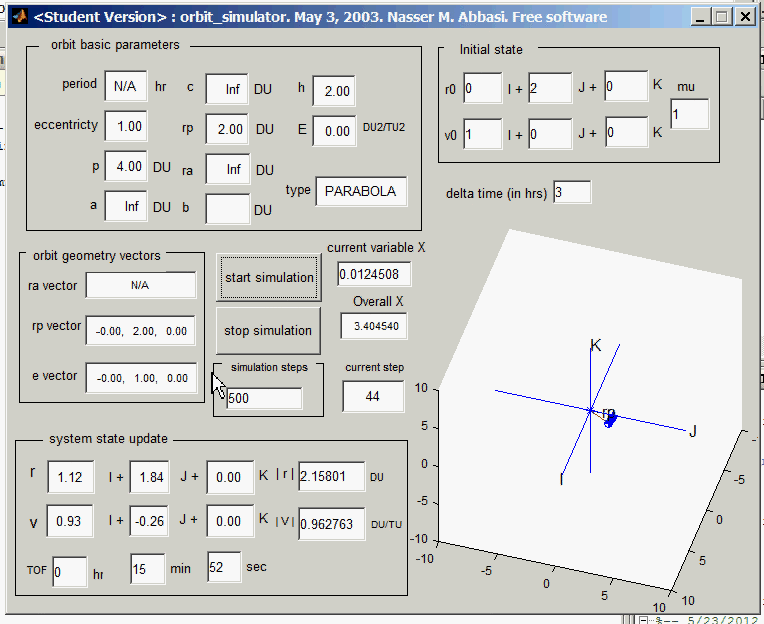

88	nma_orbit_simulator.m nma_orbit_simulator.zip	depends	GUI m file for my orbit simulator project for a class at UCI. need the fig file below
89	nma_rocket_design.m nma_rocket_design.zip	depends	design rocket from earth to GEO final project MAE 146 at UCI
90	nma_rocket_design_PERMUTE.m nma_rocket_design_PERMUTE.zip	depends	some variation of the the above design
91	nma_rocket_getLagrangeMultiplier.m nma_rocket_getLagrangeMultiplier.zip	depends	Solves equation 5.57 in the book orbital mechanices page 96, by Prussing and Conway
92	nma_rocket_mutliStageSolutionLagrange.m nma_rocket_mutliStageSolutionLagrange.zip	depends	design for a multi-stage rocket.Finds the mp, ms, lambda, and the Z for each rocket stage based on optimization based on using the lagrange multiplier method
93	nma_rocket_solveRocketEquationOneStage.m nma_rocket_solveRocketEquationOneStage.zip	depends	Solves for Mp (mass of properellent) and Ms (mass of structure) for a given one stage rocket.
94	nma_rocket_solveRocketEquationOneStage_form2.m nma_rocket_solveRocketEquationOneStage_form2.zip	depends	Solves the rocket equation for delta V given Mp (mass of properellent) and Ms (mass of structure) and mL (payload) and Isp and epsilon for a one stage rocket.
95	nma_rocket_solveRocketEquationOneStage_form3.m nma_rocket_solveRocketEquationOneStage_form3.zip	depends	Solves the rocket equation for delta V given Mp (mass of properellent) and Ms (mass of structure) and mL (payload) and Isp
96	nma_runProbeSimulation.m nma_runProbeSimulation.zip	depends	runs a simple simulation of a probe starting from some position and velosity vector for some delta time.
97	nma_solveProb_43.m nma_solveProb_43.zip	depends	solves a problem, need to document
98	matlab class nma_spring.m nma_spring.zip	depends	static class to make spring for plotting animations
99	matlab handle class rect_pulse_on_periodic_1D.m rect_pulse_on_periodic_1D.zip	depends	implements the rectangular pulse, which is used in implementation of HW3, Math 228B
100	nma_lap1d.m nma_lap1d.zip	depends	generate 2D matrix A for poisson 3D
101	nma_lap2d.m nma_lap2d.zip	depends	generate 1D matrix A for poisson 3D
102	nma_lap3d.m nma_lap3d.zip	depends	generate 3D matrix A for poisson 3D
